B1

Serve-Over Counter

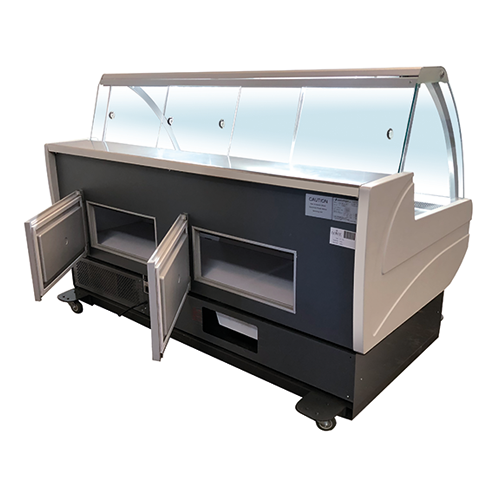

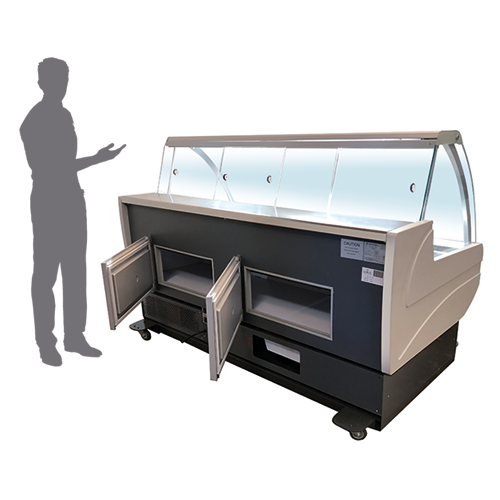

4ft Curved Glass Serve Over Display Refrigeration Unit

Dimensions (WxDxH) in Dimensions (WxDxH) in 52.37x43x52.50
Electrical Req. (Amps) Electrical Req. (Amps) 20
Display Area ft² Display Area ft² 11
Temperature Range (°F) or (°C) Temperature Range (°F) or (°C) (34 - 42) or (+1 - +6)
Specifications Model Numbers
  B1
Dimensions (WxDxH) (inches) 52.37x43x52.50
Width without end walls (inches) 47
Display Area (ft²) 11
Storage capacity (ft³) 5.5
Storage area width (inches) 47
Storage area depth (inches) 20
Storage area height (inches) 10
Condensing unit size (HP) 0.5
Refrigerant R404
Power Supply v/Hz/Ph 120/60/1
Electrical Requirements (Amps) 20
Electrical Requirements (Watts) 2000
Deck fans 1
Temperature Range (°F) or (°C) 34 - 42 or +1 - +6

Plug - each unit requires a single dedicated power supply; 24 hour power if keeping product in unit overnight

• Automatic defrost
• Heater pan evaporation (no plumbing required)
• Built in preparation counter
• Castors supplied with case
• Easy to clean surfaces
• Forced air cooling
• Fully self contained unit
• Illuminated stainless steel display deck
• Rear access to display deck for server
• Refrigerated under-storage (accessed through rear doors with magnetic gaskets)
• Simple plug in operation
• Top hinged glass with hydraulic arm support for curved glass unit
• ABS foamed end walls
• Ice insert for fish display available upon request

* Display shelf available upon request (NOT refrigerated)
