| Specifications | Model Numbers | ||||
| 36 Inch Charbroiler | |||||
| Dimensions (WxD) (inches) | 36 x 30¼ | ||||
| Gross Weight (Lbs./Kg) | 315/143.01 | ||||
| Gas Consumption (BTU/Hr) | 90,000 | ||||
| Gas Consumption (kW) | 26.38 | ||||
Charbroiler

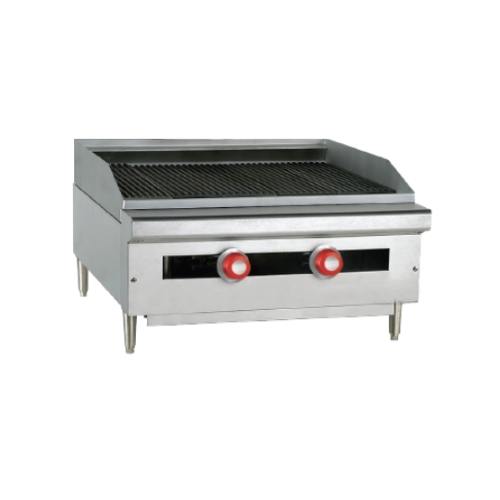

36 Inch Charbroiler
Heavy duty stainless steel gas counter broiler on welded angle iron frame
Dimensions (WxD) (inches)
|
36 x 30¼ |
Gas Output (BTU/Hr)
|
90,000 |
Specifications
• One heavy-duty cast-iron H-Type burner per 12” section; at 30,000 BTU/hr.
• Heavy cast-iron radiants with multiple heat sinks retain heat, minimize recovery time during peak periods
• Cast-iron radiants protect the burner from blockage and flare-ups.
• (2) radiants per burner.
• Each burner is specifically baffled to reflect usable heat away from the drip pan and into the cooking zone.
• Heavy-duty cast-iron grates for maximum heat retention and cooking efficiency by minimizing recovery time during peak periods.
• Single piece precision brass valves with infinite heat control.
• Spatula width grease trough.
• Easy to remove drip pans.
• Gas pressure regulator.
• Fully stainless-steel exterior.
