| Specifications | Model Numbers | ||||
| 24 Inch Griddle | 36 Inch Griddle | 48 Inch Griddle | |||
| Dimensions (WxD) (inches) | 24 x 30¼ | 36 x 30¼ | 48 x 30¼ | ||
| Gross Weight (Lbs./Kg) | 250/113.5 | 340/154.36 | 435/197.49 | ||
| Gas Consumption (BTU/Hr) | 60,000 | 90,000 | 120,000 | ||
| Gas Consumption (kW) | 17.59 | 26.38 | 35.17 | ||
Griddle

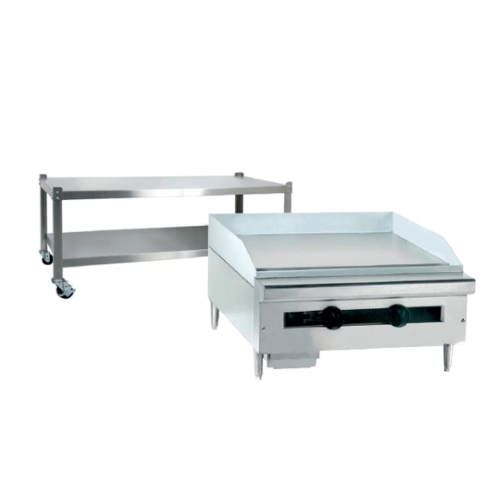

Gas Counter Griddles
Heavy duty stainless steel gas counter griddles on welded angle iron frame
Dimensions (Width)
|
24 Inch / 36 Inch / 48 Inch |
Gas Output (BTU/Hr)
|
60,000 / 90,000 / 120,000 |
Specifications
• Fully stainless-steel exterior
• Gas pressure regulator
• 5/8” thick, highly polished steel plate
• 21½ (546mm) working depth
• 4” 101.5mm plate rail
• Spatula width – 3 1/8” (79 mm) – grease trough
• One heavy duty steel tube burner per 12” section
• Burner rated at 30,000 BTUs per hour
• Each 12” section is controlled by a manual valve
• Each 24” section is controlled by a thermostat
• Large capacity grease container with integral lid
