B2 - LG

Deli Self-Service Display B2-LG

6.4ft Euro Deli Self-Service Display With Refrigerated Under Storage

Dimensions (WxDxH) in Dimensions (WxDxH) in 77 x 43 x 38 ¼
Electrical Req. (Amps) Electrical Req. (Amps) 20
Display Area ft² Display Area ft² 16 ½
Temperature Range (°F) or (°C) Temperature Range (°F) or (°C) (34 - 42) or (+1 - +6)
Specifications Model Numbers
  B2 - LG
Dimensions (WxDxH) (inches) 77 x 43 x 38 ¼
Width without end walls (inches) 70 ¼
Display Area (ft²) 16 ½
Storage capacity (ft³) 8 ¼
Storage area width (inches) 70 ¼
Storage area depth (inches) 20
Storage area height (inches) 10
Condensing unit size (HP) 1/3
Refrigerant R404
Power Supply v/Hz/Ph 120/60/1
Electrical Requirements (Amps) 20
Electrical Requirements (Watts) 2000
Deck fans 2
Temperature Range (°F) or (°C) 34 - 42 or +1 - +6

Plug - each unit requires a single dedicated power supply; 24 hour power if keeping product in unit overnight

• Automatic defrost
• Heater pan evaporation (no plumbing required)
• Built in preparation counter
• Castors supplied with case
• Easy to clean surfaces
• Forced air cooling
• Fully self contained unit
• Illuminated stainless steel display deck
• Rear access to display deck for server

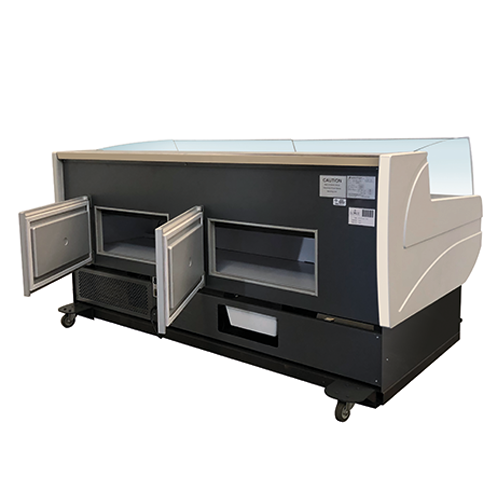

• Refrigerated under-storage (accessed through rear doors with magnetic gaskets)
• Simple plug in operation
• Top hinged glass with hydraulic arm support for curved glass unit
• ABS foamed end walls
• Ice insert for fish display available upon request
