| Specifications | Model Numbers | ||||
| G223 | |||||
| Dimensions (WxDxH) (inches) | 13 1/2 x 17 x 25 | ||||
| Bowls | 2 | ||||
| Capacity Ltr. | 23 | ||||
| Capacity Gallon | 6.34 | ||||
| Condensing unit size (HP) | 1/10 | ||||
| Refrigerant | R134 | ||||
| Power Supply v/Hz/Ph | 120/60/1 | ||||
| Electrical Requirements (Amps) | 15 | ||||
| Electrical Requirements (Watts) | 1500 | ||||
| Supporting Base | 13h x 14w | ||||
| Temperature Range (°F) or (°C) | (39 - 61) or (+4 - +16) | ||||

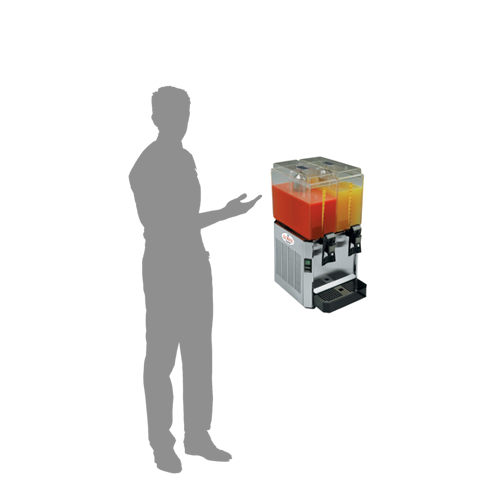

G223
Two Bowl Drink Dispenser
Two Bowl Drink Dispenser With Motorized Paddles
Dimensions (WxDxH) in
|
13 1/2 x 17 x 25 |
Electrical Req. (Amps)
|
15 |
Electrical Req. (Watts)
|
1500 |
Temperature Range (°F) or (°C)
|
(39 - 61) or (+4 - +16) |
Specifications
Plug - each unit requires a single dedicated power supply; 24 hour power if keeping product in unit overnight
• Motorized paddle maintain mixing of product
• Adjustable thermostatic system
• Easily removable for cleaning
• Refrigeration System 120 Volt 60Hz
